Description

This high-tech machine, optimized with advanced overseas technology and GMP standard, offers easy operation, accurate filling, stable performance, and low noise.

It incorporates PLC programming for seamless liquid-to-paste product filling, sealing, and coding in a single unit.

Direct operation: utilizing PLC and touch interface.

Precise positioning: Test tubes are adjusted by aligning the photoelectric sensor.

Dispensing nozzles: equipped with sealing elements made in Japan to prevent any leakage.

Full processability: the system automatically labels the bottom of the tube with the lot number.

Key Features

About Safety

High safety

Integrated automatic counting and emergency stop (E-stop) functions enhance controllability. Optional features such as heating and mixing devices and protective covers add operational benefits and safety precautions.

High precision
High quality accessories
Waterproof and easy to clean

About Configuration

Full range of configuration options

Changing various components and making minor adjustments allows the machine to be configured for three-sided, five-sided and other folding configurations. The machine is designed with a no-tube, no-fill mechanism to avoid unnecessary filling.

Multiple optional features
High degree of flexibility

About the service

Comprehensive Service

We offer a comprehensive range of services, includingtechnical support, regular maintenance and solutionstailored to your needs, to give you peace of mind.

Provide remote video service
Response within 24 hours
Technical support
Maintenance service
Customized solutions

Applications

It’s the ideal equipment in cosmetic, pharmacy, food, adhesive and other industry, suitable for the metal and plastic soft tubes filling and sealing.Fully match with the GMP standard.

Plastic Flexible Tube Containers

Technical Data

UR-40RG / UR-60RG / UR-80RG

Model	UR-40RG	UR-60RG	UR-80RG
Tube material	Plastic tube、Composite tube	Plastic tube、Composite tube、Aluminum tube、Lead tube
Tube diameter	Ф16-Ф50mm	Plastic tube、Composite tube: Ф13-Ф50mm Aluminum tube: Ф13-Ф32mm
Tube length	50-210mm(can be customized)
Filling volume	5-260ml/pcs(can be adjustable)
Filling accuracy	conform to GB/T10799-2007
Product capacity(Pcs/min)	25-40	30-60	35-75
Power source	3P 380V/220v 50Hz
Power	6 Kw	10Kw	8.5Kw
Air supply	0.6-0.8Mpa	0.55-0.65Mpa	0.55-0.65Mpa
Heat sealing power	3.0 KW
Chiller power	1.4KW
Overall dimension(mm)	19009001850(LWH)	210011001900(LWH)	250011002000(LWH)
Machine weight(KG)	360KG	1200KG	1300KG
Working environment	Normal temperature and humidity
Noise	《70dba
Control system	Variable frequency stepless speed regulation, PLC control
Material	304/316 stainless steel is used in contact with the product, and environmentally friendly materials are used in contact with the tube.

Craftsmanship

Feasibility of design principles:

The machine have 12 station for function

Control by both touch screen and botton.

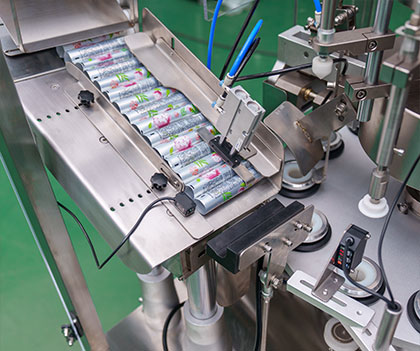

TAutomatic Tube Loading：Adjustable tube size loading，sensor control loading system

Stainless steel panel control
Stainless steel, tubular holding post with Twin axis swivel panel control.
Emergency Stop on the control panel.
(7’’) multi-color touch screen control
HMI resolution
Programmable feeder, conveyor speed, etc.
For normal machine operation with alarm display.
Possibility to have different language interfaces.

Push the tube into the mould,and sensor can confirm the tube is ready.

Compact Design
Driving Parts Fully-closed
Pneumatic Tube Loading

Filling system，It can be used with automatic loading and water cooler.

Intelligent Temperature Control and Cooling System
Easy to Operate and Adjust
316L Stainless Steel Contact Parts to meet GMP Standard

After filling will cut the waste edge,Perfect and neat edge banding.

Orderly discharge

Safety Interlock Shutdown when Door is Open
Overload Protection Provided
Automated Working process from Tube Loading to Finished Products Output
Automatic Orientation Effected by Photoelectric Induction

FAQ

How to choose the tube filling machine?

please show me your tube picture,it is aluminum tube or plastic tube?and size of them.what kind of raw material into the tube.

Can you support after-sales service?

We provide lifetime after-sales service.
We provide free Internet technical help, English technical manual, detailed operation video, and we can also provide engineers with on-site machine operation and machine maintenance training.

Why should we choose your company?

We specialize in R&D, manufacturing and sales of various packaging equipment for more than 10 years and provide the best after-sales service.

How about warranty period for the machine?

The warranty period is two year (nonhuman damage).
